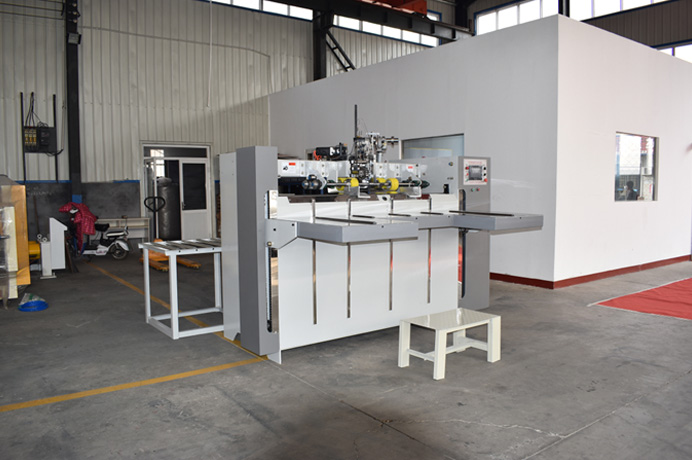

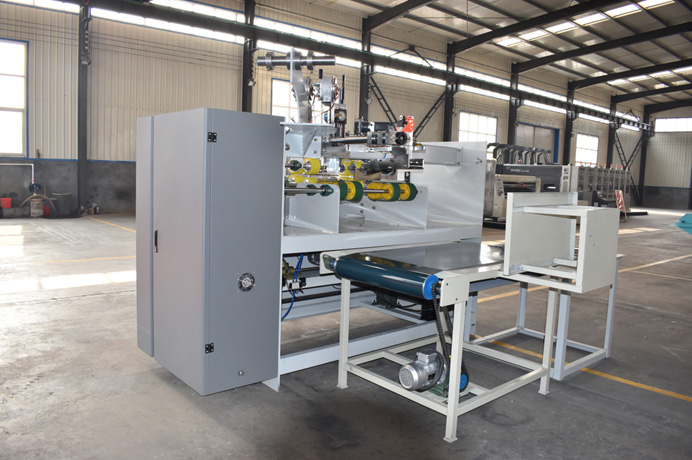

SEMI AUTOMATIC STITCHING MACHINE
It can promote the finished products, products and expand the product's characteristics, and improve the production management is more elastic,Arrange production process, at the same time can save time and cost of production。

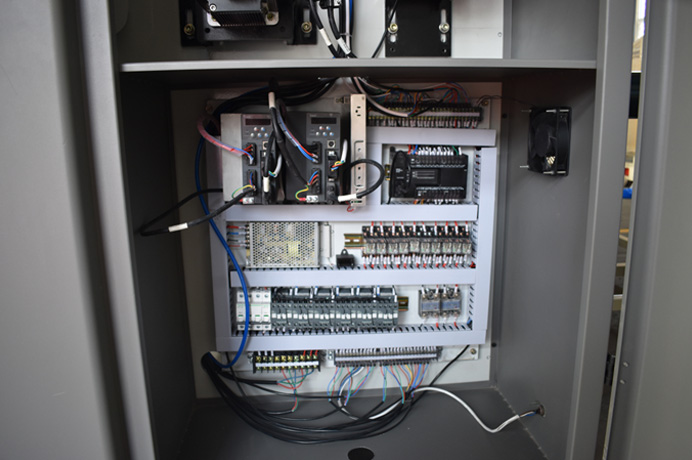

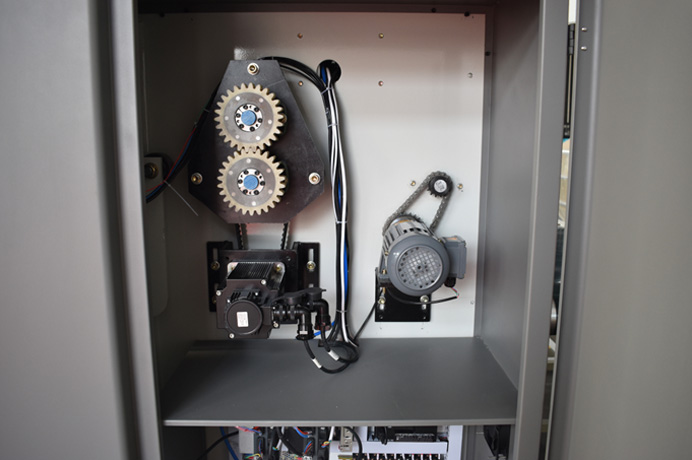

- Imported double servo drive, precision accurate, mechanical transmission part decreases, can effectively reduce the mechanical failure rate.
- Touch screen operation, the parameters (nail distance, pin number, nail type, tailgate) transform is convenient and fast.

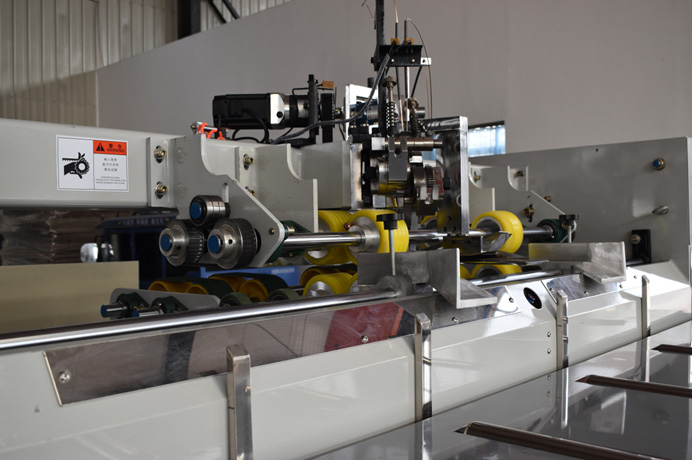

- Whole the pin head all adopt the special steel production, the computer precision machining.
- Can nail single nail, double nail, strengthen nails (two head is double nail, and the middle part is single nail) one-time finish, can suitable for different customers on the nail of different requirements.
- Transform carton size and adjust carton nail distance, it takes only one minute to complete, and greatly save time convenient operation.
- Front end paper feed department automatic counting, Feeding paper table with opto-electronic devices,when feeding paper automatically rise.
- Posterior segment with automatic counting function, completes the finished product number of sheets can be directly set number (1-99), batch sent to the conveying machinery end, Convenient packaged banding.
- Mechanical speed: 500 nail/minutes.

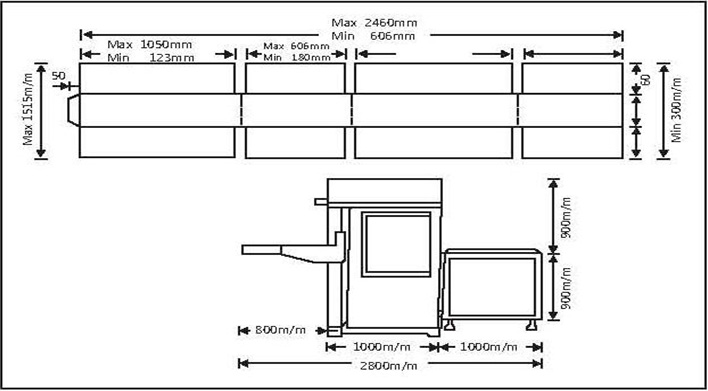

Technological parameter
